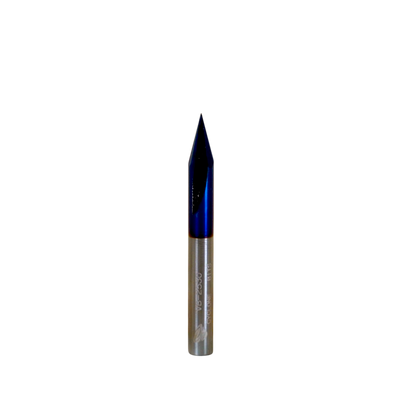

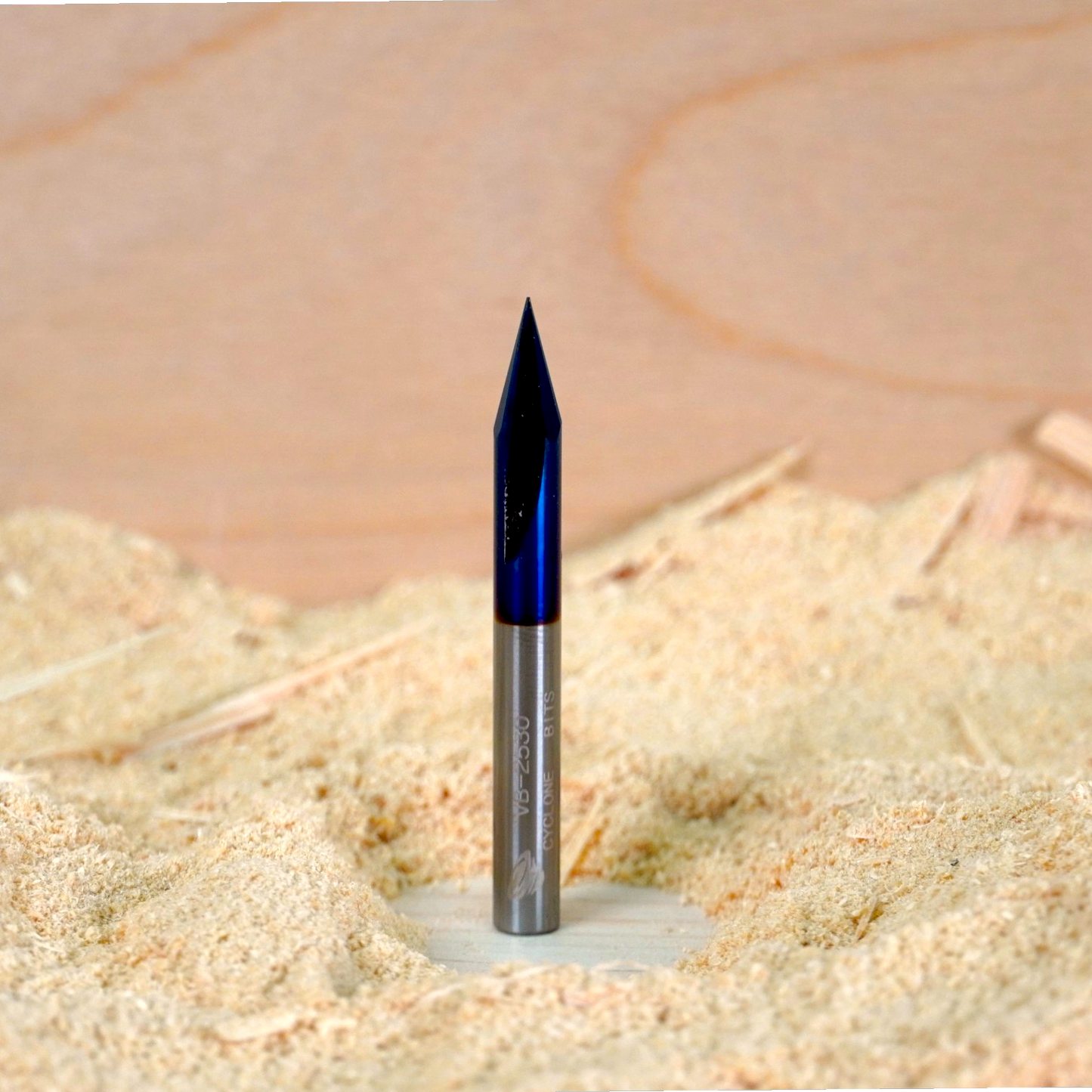

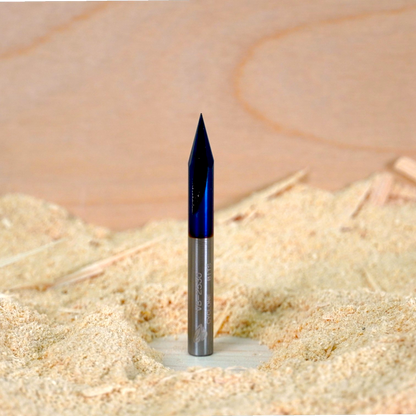

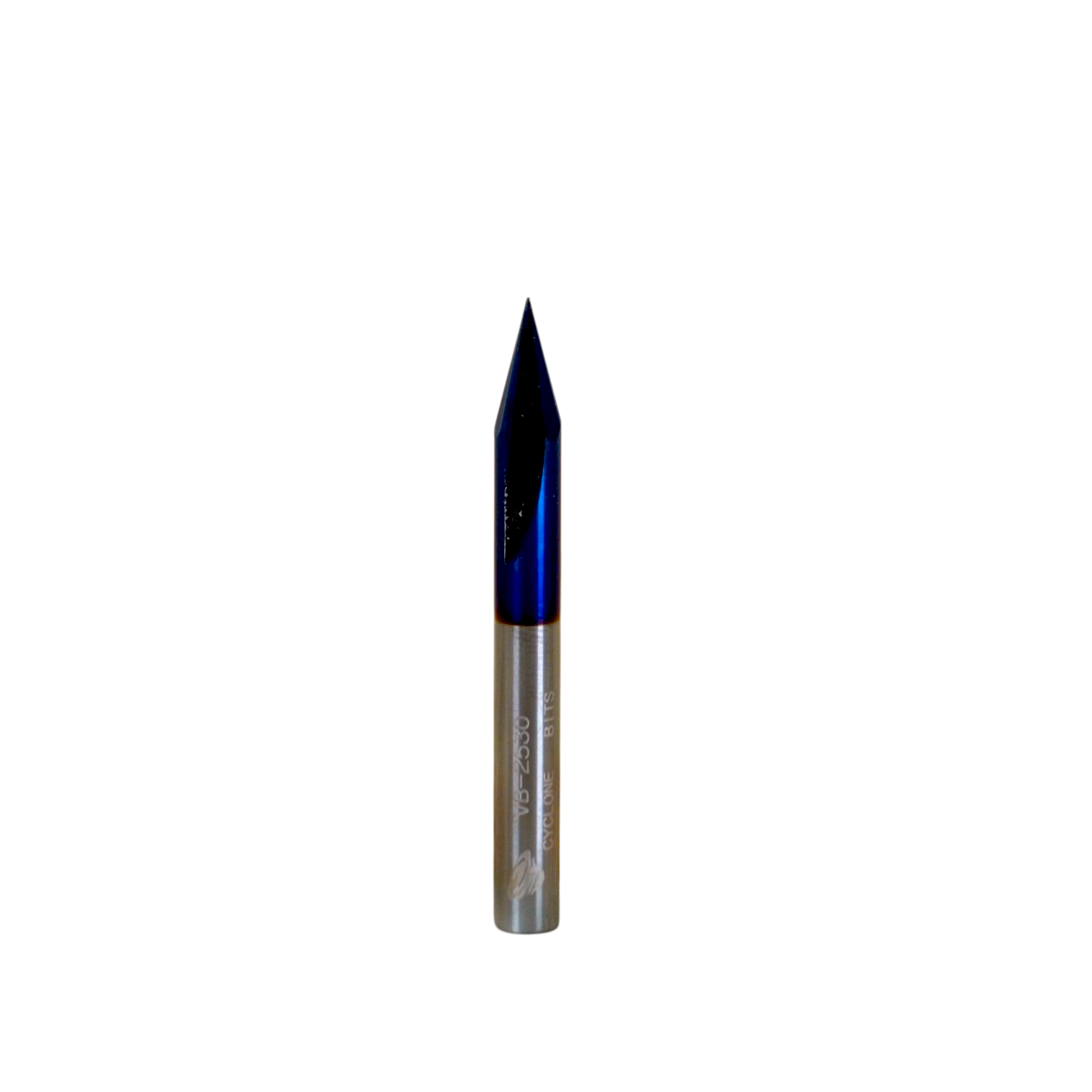

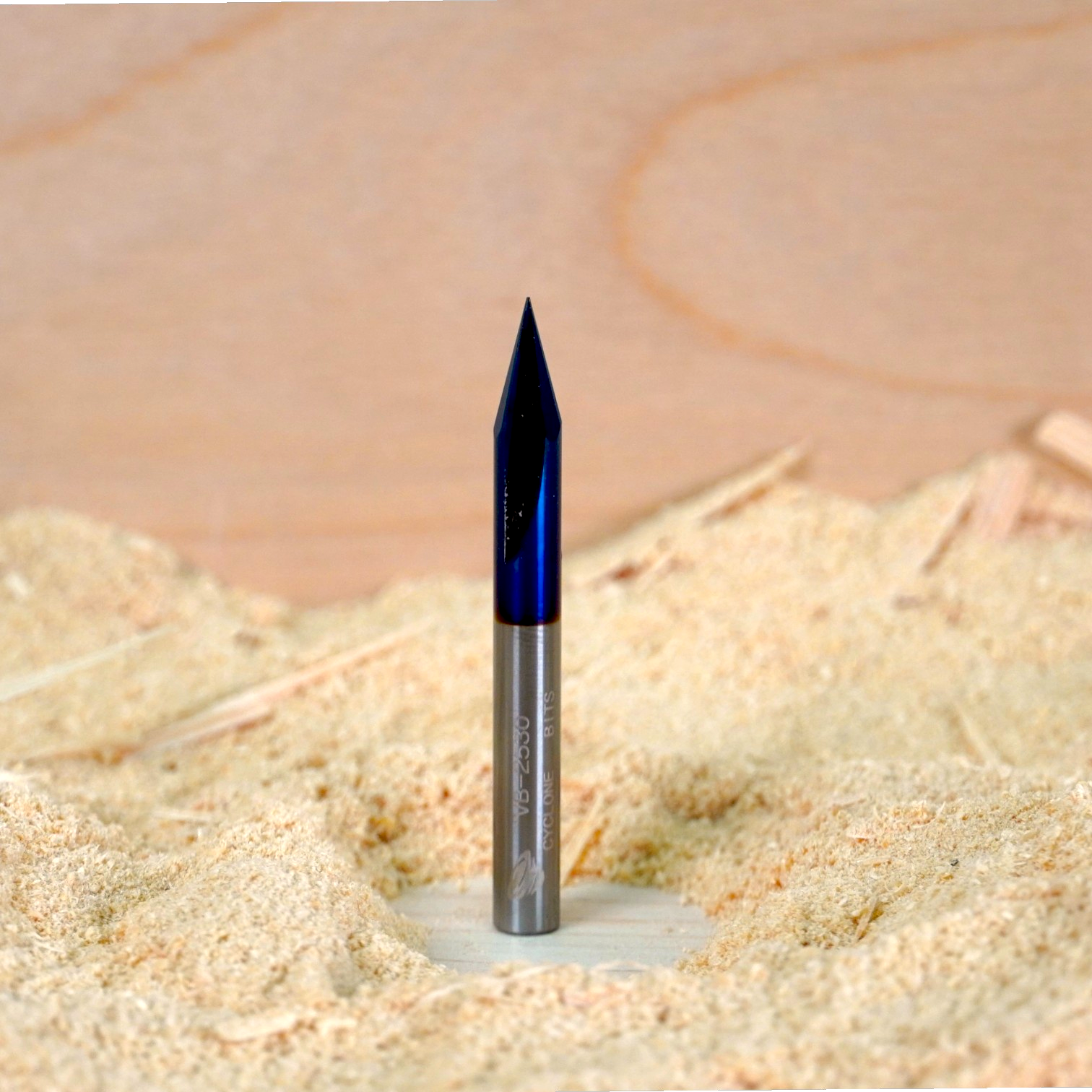

VB-2530 30deg V-Bit

30° V-Bit
Tungsten Carbide • Nano Blue Coated

Overview
Built for fine-detail engraving, sharp line work, and precision V-carving. The 30° angle creates crisp, narrow cuts for text, logos, inlays, and decorative details, while the rigid carbide construction supports clean cutting on spindle-driven CNC machines.

Best For

• Fine-detail engraving
• Sharp V-carved text
• Logos and inlays
• Decorative line work

Why Choose It

• Sharp angle for crisp, narrow cuts
• Excellent control for shallow engraving
• Clean edges with minimal fuzzing
• Ideal for precision detail work

Starting Parameters
Light passes produce the best results. Adjust for material, machine rigidity, and detail level.

• Spindle: 16,000–22,000 RPM
• Feed: 60–140 IPM
• Plunge: 20–40 IPM
• Depth Strategy: Reduce feed and depth for very fine text or delicate materials

Compatible Materials

• Hardwood
• Softwood
• MDF
• Plywood
• Plastics for engraving and marking

Specifications

• Tool Type: V-Bit
• Included Angle: 30°
• Flutes: 3
• Shank Diameter: 1/4"
• Overall Length: 2.36"
• Material: Tungsten Carbide
• Coating: Nano Blue

Notes

• Cutting width changes with depth of cut
• Shallow passes produce the sharpest results
• Not intended for deep material removal
